1、旋轉供料器加工精度高,具有鎖氣功能,可用于粉碎、分級系統的粉料定量供料器,又可作為分離、收塵等系統的旋轉供料器,或用于壓送式、吸送式氣力輸送系統。
1. The rotary feeder has high processing accuracy and air locking function. It can be used as a quantitative feeder of powder for crushing and grading systems, as a rotary feeder for separation, dust collection and other systems, or as a pressure feeding and suction feeding pneumatic conveying system.
2、帶有壓力平衡裝置,可用在正壓、負壓輸送系統。
2. With pressure balance device, it can be used in positive pressure and negative pressure conveying systems.
3、可采用鑄鐵、鑄鋼、不銹鋼、鈦鋼等多種材質,法蘭口可為方形或圓形等多種結構形式,滿足用戶不同需求。旋轉供料器輸送今天小編帶大家詳細對比一下旋轉供料器與料封泵的區別,一家之言本文只具參考作用,如有遺漏或者錯誤歡迎大家指正。封料泵輸送1.輸送量與輸送距離。上面已經說了一般情況下旋轉供料器與料封泵的氣源均為羅茨風機。所以輸送量是差不多的封料泵產品技術參數旋轉供料器參數旋轉供料器輸送距離:旋轉供料器的輸送距離佳距離為45-50,遠距離為300m料封泵輸送距離:小編參考某一廠家資料得出輸送距離約為30-500m
3. It can be made of cast iron, cast steel, stainless steel, titanium steel and other materials. The flange opening can be square or round and other structural forms to meet the different needs of users. Rotary feeder conveying Today, we will compare the difference between rotary feeder and material seal pump in detail. This article is only for reference. If there is any omission or mistake, please correct it. Conveying by sealing pump 1. Conveying volume and distance. It has been said that in general, the air source of rotary feeder and seal pump is Roots blower. So the delivery capacity is similar to that of the seal pump. Technical parameters of the rotary feeder. Parameters of the rotary feeder. Delivery distance of the rotary feeder. The best distance is 45-50, and the distance is 300m. Delivery distance of the seal pump: The small edition refers to the information of a manufacturer and obtains that the delivery distance is about 30-500m

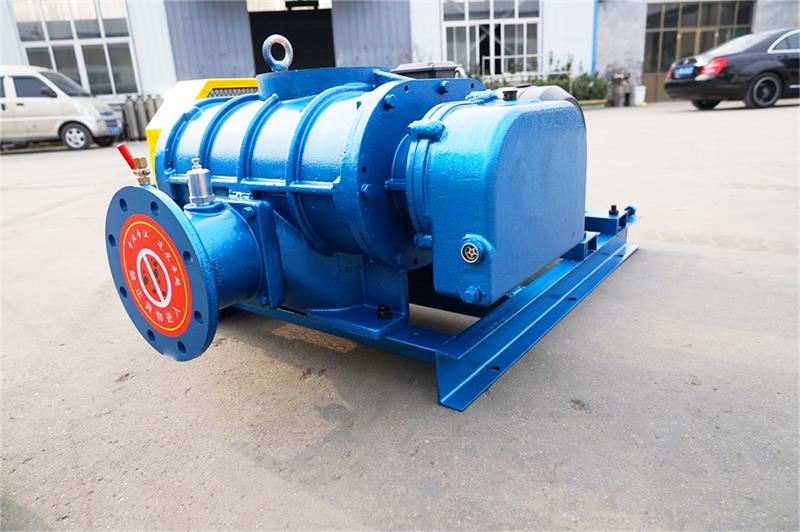

2.工作壓力,料封泵與旋轉供料器通常采用羅茨風機供氣工作壓力一般在0.1Mpa以下
2. Working pressure: Roots blower is usually used for material seal pump and rotary feeder, and the working pressure is generally below 0.1Mpa
3.工作方式,旋轉供料器與料封泵工作采用連續式工作,工作過程中進料和輸送同時進行。
3. Working mode: the rotary feeder and the seal pump work in a continuous manner, and the feeding and conveying are carried out simultaneously during the working process.
4.輸送濃度,旋轉供料器為懸浮流稀相輸送,物料為懸浮狀態,基本不會引起管道堵塞料封泵只能進行低濃度輸送。在輸送過程中,一定要防止因濃度升高而引起管道堵塞或吹穿料封層
4. The rotary feeder is used to transport the concentration in the dilute phase of the suspended flow. The material is in the suspended state, which will not cause pipe blockage. The material seal pump can only transport at low concentration. During the transportation process, it is necessary to prevent the pipe from blocking or blowing through the seal layer due to the increase of concentration
5.輸送速度,旋轉供料器為稀相輸送,輸送速度比料封更快一點。旋轉供料器對與管道的磨損要比料封泵稍大,但是差別不大。
5. Conveying speed: the rotary feeder is used for dilute phase conveying, and the conveying speed is a little faster than the material seal. The abrasion of the rotary feeder to the pipe is slightly greater than that of the seal pump, but the difference is not significant.
6.輸送管道,旋轉供料器可以多個下料口共管。龍鼓重工氣力輸送現場旋轉供料器共管龍鼓重工氣力輸送現場旋轉供料器共管料封泵一般不能多泵共管,只能一臺泵一根輸送管,當有多個下料口時管道布置復雜。
6. The conveying pipe and the rotary feeder can have multiple feeding ports. The rotary feeder on the pneumatic conveying site of Dragon Drum Heavy Industry shares the same pipe. The rotary feeder on the pneumatic conveying site of Dragon Drum Heavy Industry shares the same pipe. Generally, the seal pump can not have multiple pumps and pipes, but only one pump and one delivery pipe. When there are multiple blanking ports, the pipeline layout is complex.
7.。同樣輸送量的旋轉供料器的相比料封泵要便宜很多。(很多是多多?想知道聯系我)并且因?yàn)樾D(zhuǎn)供料器的各種優勢,很多廠家已經在對料封泵進行了替換。行業內的大佬也慢慢更傾向于選擇旋轉供料器來進力輸送的設計??赐曛竽佬D(zhuǎn)供料器與料封泵怎么選擇了嗎?本期內容干貨很多,耗費了小編不少腦細胞,如果大家覺得有點幫助歡迎大家多多點贊轉發支持。
7. Price. The price of rotary feeder with the same delivery capacity is much cheaper than that of seal pump. (Many are many? Please contact me.) Because of the advantages of the rotary feeder, many manufacturers have replaced the seal pump. The leaders in the industry are also gradually more inclined to choose the rotary feeder for the design of pneumatic conveying. After reading, do you know how to choose the rotary feeder and seal pump? This issue has a lot of dry goods and costs a lot of brain cells. If you think it is helpful, you are welcome to give more likes and support.
氣力輸送特點
Pneumatic conveying characteristics
氣力輸送的主要特點是輸送量大,輸送距離長,輸送速度較高;能在一處裝料,然后在多處卸料。
The main characteristics of pneumatic conveying are large conveying capacity, long conveying distance and high conveying speed; It can be loaded at one place and then unloaded at multiple places.
The above is a detailed introduction to the design of Guangxi pneumatic conveying scheme. I hope it will be helpful to you. If you have any questions, please contact us. We will provide you with professional services http://lzdbgs.com.cn/
