羅茨風機安裝驗收→羅茨風機啟動柜接線檢查并將轉換開關切換手動檔→開啟羅茨風機出風管閥門→點動羅茨風機檢查風機轉向→啟動羅茨風機→檢查風機運行情況→檢查風管出風情況(可觀察反沖洗出風)→檢查出風管壓力變送器和機械壓力表壓力變化→停機→將風機啟動柜轉換開關切換自動→在PLC面板或中控室操作站啟/停羅茨風機→將現場控制柜轉換開關切換停止檔→啟停風機應無效
Installation and acceptance of Roots blower → check the wiring of Roots blower starting cabinet and switch the change-over switch to manual gear → open the outlet pipe valve of Roots blower → jog the Roots blower to check the direction of the blower → start the Roots blower → check the operation of the blower → check the air outlet of the air duct (observe the backwash air outlet) → Check the pressure change of the outlet pipe pressure transmitter and the mechanical pressure gauge → stop → switch the switch of the fan starting cabinet to automatic → start/stop the Roots blower at the PLC panel or the central control room operation station → switch the switch of the field control cabinet to the stop position → start/stop the blower should be invalid
(1)風機試運轉前,應符合下列要求:
(1) Before the fan test run, the following requirements shall be met:
1)軸承箱和油箱應經清洗潔凈、檢查合格后,加注潤滑油;加注潤滑油的規格、數量應符合隨機技術文件的規定;
1) The bearing box and oil tank shall be cleaned and checked to be qualified before lubricating oil is added; The specification and quantity of lubricating oil shall comply with the provisions of the accompanying technical documents;
2)電動機、汽輪機和尾氣透平機等驅動機器的轉向應符合隨機技術文件的要求;
2) The steering of drive machines such as motors, steam turbines and tail gas turbines shall meet the requirements of the accompanying technical documents;
3)盤動風機轉子,不得有摩擦和碰刮;
3) Turn the fan rotor without friction and scratch;
4)潤滑系統和液壓控制系統工作應正常;
4) The lubrication system and hydraulic control system shall work normally;

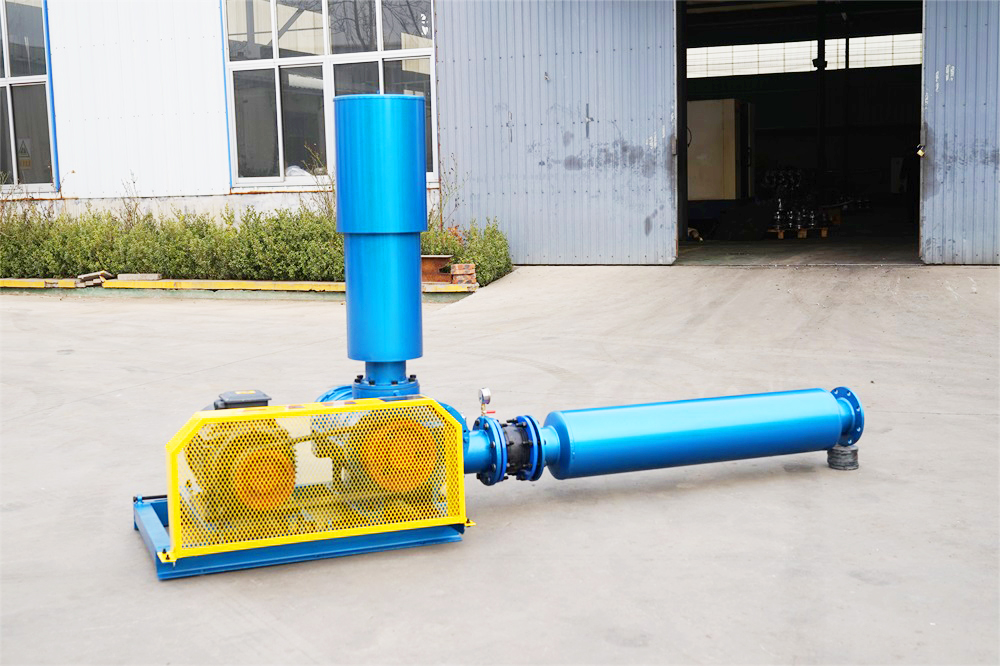

污水處理羅茨風機
Roots blower for sewage treatment
5)風機的和連鎖報警與停機控制系統應經模擬試驗,并應符合下列要求:
5) The safety and interlock alarm and shutdown control system of the fan shall undergo simulation test and meet the following requirements:
a)冷卻系統壓力不應低于規定的值;
a) The cooling system pressure shall not be lower than the specified minimum value;
b)潤滑油的油位和壓力不應低于規定的值;
b) The oil level and pressure of lubricating oil shall not be lower than the specified minimum value;
c)軸承的溫度和溫升不應高于規定的值;
c) The temperature and temperature rise of the bearing shall not be higher than the specified maximum value;
d)軸承的振動速度有效值或峰-峰值不應超過規定值;
d) The effective value or peak-to-peak value of bearing vibration speed shall not exceed the specified value;
e)喘振報警和氣體釋放裝置應靈敏、正確、可靠;
e) The surge alarm and gas release device shall be sensitive, correct and reliable;
f)風機運轉速度不應超過規定的速度。
f) The operating speed of the fan shall not exceed the specified maximum speed.
6)機組各輔助設備應按隨機技術文件的規定進行單機試運轉,且應合格;
6) Each auxiliary equipment of the unit shall be subject to single unit test run according to the provisions of the accompanying technical documents and shall be qualified;
7)風機傳動裝置的外露部分、直接連通大氣的進口,其防護罩(網)應安裝完畢;
7) The protective cover (net) of the exposed part of the fan transmission device and the inlet directly connected to the atmosphere shall be installed;
8)主機的進氣管和與其連接的有關設備應清掃潔凈。
8) The intake pipe of the main engine and related equipment connected to it shall be cleaned.
